Working Temperature:-90~-135°C
Maximum Load:500W@-100℃
Pumping Speed:24000L/sec
Professional control panel, RS485 available
Strength guarantee: 20 years of manufacturing experience,
24-hour after-sales service
* Working Temperature:-90~-135℃;
* Maximum Load:500W@-100℃
* Pumping Speed:24000L/sec
* Cryocoil Surface:0.2㎡
* Cooling mode:Air-Cooled
* Net weight:87Kg
* Power requirements:220V/1Ph/50Hz/2.5kW
* Overall dimension :500W×550D×1200Hmm

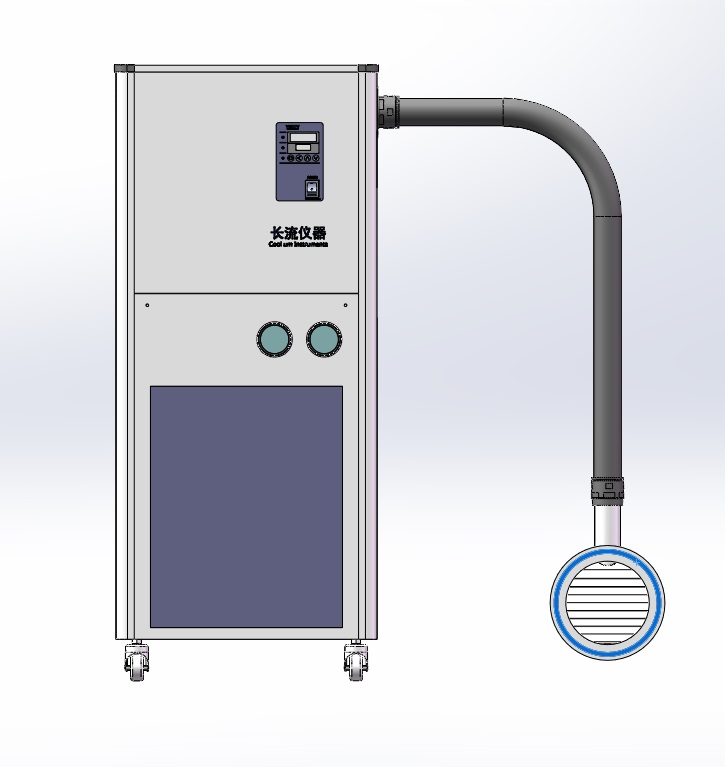

Main features of VaporCold water vapor cryochiller:
* Rapid water vapor trapping, shorten the vacuum pumpdown time by 25-90%;
* Improve coating quality, for the best films, better adhesion and more reproducible deposition;
* Fast cooling, cool to -100℃ within 5 minutes, with a minimum of -135℃;
* Fast defrosting, defrost to 20℃ within 5 minutes ;
* The refrigeration system is optimized to cool down again within 5 minutes;
* With professional control circuit, Process data logging is supported by RS485;
* International brand refrigeration compressor, environmental friendly refrigerant mixture;
* The defrosting temperature can be set freely by the control panel.
* Alarm protection for high discharge temperature and pressure;
* RS485 communication to facilitate connection to upper computer.
* Small Footprint
* Attain Deeper Vacuum
* Fast Cool Down for shorter cycle times
* Decrease Pump down Times by 25% to 90%
* More Efficient Water Vapor Pumping
* Fast Defrost and fast cool down again
* Improve Coating Quality and Quantity of products
* Eliminate Costly LN2 Usage For Fast Payback
